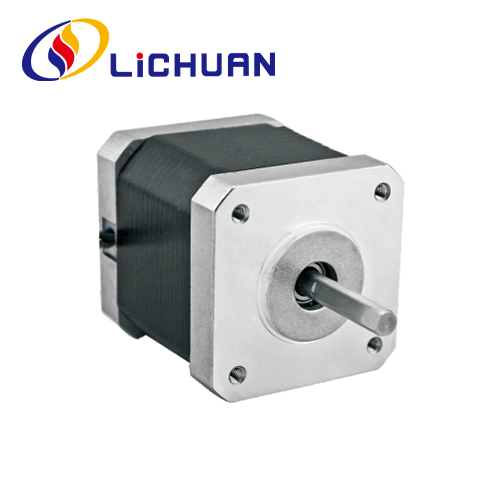

86 Series 2 Phase Nema 24 Hybrid Stepper Motor
Factory Directly 86 Series 2 Phase Nema 24 Hybrid Stepper Motor made in China. LICHUAN® is 86 Series 2 Phase Nema 24 Hybrid Stepper Motor manufacturer and supplier in China.
Send Inquiry
Product Description
LICHUAN® warmly welcome you to wholesale 86 Series 2 Phase Nema 24 Hybrid Stepper Motor from our factory. Our products have CE certified and currently have a large amount of factory inventory. Lichuan factory have more than 14 years production experience .We are support OEM&ODM ,We will provide you with good service and factory discounted prices. We welcome more distributors to join LICHUAN.
86 series 2 phase Nema34 closed loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance, To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 82mm ~ 176mm, the torque range: 3N.m ~ 12N.m, motor shaft diameter 14mm. 86 series 2 phase Nema34 closed loop stepper motor can be match for 4 type driver:RS485. Canopen. Ethercat. Pulse control drivers.
Electrical Performance Parameters
| Item | Specifications |
| Step Angle Accuracy | ±5%(FullStep) |
| Resistance Accuracy | ±10%(20℃) |
| Inductance Accuracy | ±20%(1KHZ) |
| Temperature Rise | 80℃ max(rated current, 2 phase power on) |
| Ambient Temperature | -20℃~*50℃ |
| Insulation Resistance | 100MQMin 500VDC |
| Dielectric Strength | 500V AC 1 minute |
| Allowable Radial Load | 0.02mm Max. (450g load) |
| Allowable Thrust Load | 0.08mm Max. (450g load) |
| Radial Max Load | 28N(20mm from flange surface) |
| Shaft Max Load | 10N |
| Serles |
Step Angle(") |
Motor Length (mm) |
Holding Torque(N.m) |
Rated Current (A) |
Phase Resistance (Q) |
Phase Inductance (mH) |
Rotor Inertia(g.cm) |
Motor Weight(Kg) |
Lead Wire(No.) |
| LC42HS28 | 1.8 | 28 | 0.12 | 1.2 | 0.8 | 1.0 | 30 | 0.15 | 4 |
| LC42HS34 | 1.8 | 34 | 0.21 | 1.2 | 1.2 | 1.8 | 35 | 0.22 | 4 |
| LC42HS40 | 1.8 | 40 | 0.3 | 1.2 | 1.5 | 2.8 | 54 | 0.3 | 4 |
| LC42HS48 | 1.8 | 48 | 0.4 | 1.2 | 1.2 | 1.6 | 68 | 0.38 | 4 |
| LC42HS60 | 1.8 | 60 | 0.6 | 1.2 | 2.75 | 6.4 | 102 | 0.5 | 4 |
Above are representative products. Products can be customized!
Shape and installation size(unit:mm)
Shaft Mode of Motor
| Model |
Shaft Diameter(mm) |
Shaft Extension(mm) |
Shaft Length(mm) |
| LC42HS28 | φ5 | D-cut 0.5 x 15 | 24 |
| LC42HS34 | φ5 | D-cut 0.5x15 | 24 |
| LC42HS40 | φ5 | D-cut 0.5x15 | 24 |
| LC42HS48 | φ5 | D-cut 0.5x15 | 24 |
| LC42HS60 | φ5 | D-cut 0.5 x 15 | 24 |
Curves of Torque Frequency Characteristics
Motor Wirin Diagram
Application Wiring Diagram
A complete steppr motor control system should include the prduct shown below
Lichuan Factory Production Products Machine
-
Carving Machine -
Coating Equipment -
Fiber laster Marking Machine -
Screwing Machine -
Testing Machine -
UV Printer
-
Automatic Soldering Machine -
Holding Torque Testing Machine -
Screw Machine -
Oscillograph Machine
Industry Applications
-
Robotic Arm -
Laser Cutting Machine
-
3D Printing -
CNC Machine -
Automatic Assertmbly -
Engraving Machine
Hot Tags: 86 Series 2 Phase Nema 24 Hybrid Stepper Motor, China, Manufacturers, Suppliers, Factory, Customized, Made in China, Cheap, CE, Durable, Quality
