7 Tips for Buying the Right Worm Gear Reducer?

Selecting the right worm gear reducer is not a simple catalog exercise. The decision affects torque delivery, operating temperature, noise, maintenance, and production reliability. A compact reducer may fit the machine frame, yet fail under repeated starts, shock loads, or poor lubrication. The details matter.

Industry data supports this concern. The International Energy Agency reports that electric motor systems consume roughly half of global electricity, making transmission efficiency an important engineering issue. Grand View Research also identifies continued growth in the industrial gearbox market, driven by automation, material handling, and process equipment. These trends create more choices, but they also increase selection risk. Buyers must compare real operating conditions, not only advertised ratios or prices.

This guide presents seven practical tips for choosing a worm gear reducer with greater confidence. It considers output torque, service factor, speed ratio, duty cycle, thermal capacity, mounting position, lubrication, and supplier support. ISO 14521 provides a recognized method for evaluating worm gear load capacity, while manufacturer test data can reveal temperature rise and efficiency under realistic loads. A reducer running beside a hot conveyor motor may need different protection than one installed in a clean packaging machine. Small errors become expensive.

A catalog number can look convincing.

It can still be wrong.

The uncomfortable point is that no selection formula replaces accurate field information. Shaft alignment, ambient temperature, starts per hour, and actual load changes are often estimated poorly. Review every assumption, request documented performance data, and leave room for future demand. A careful purchase is not always the cheapest purchase, but it is usually easier to defend, maintain, and improve.

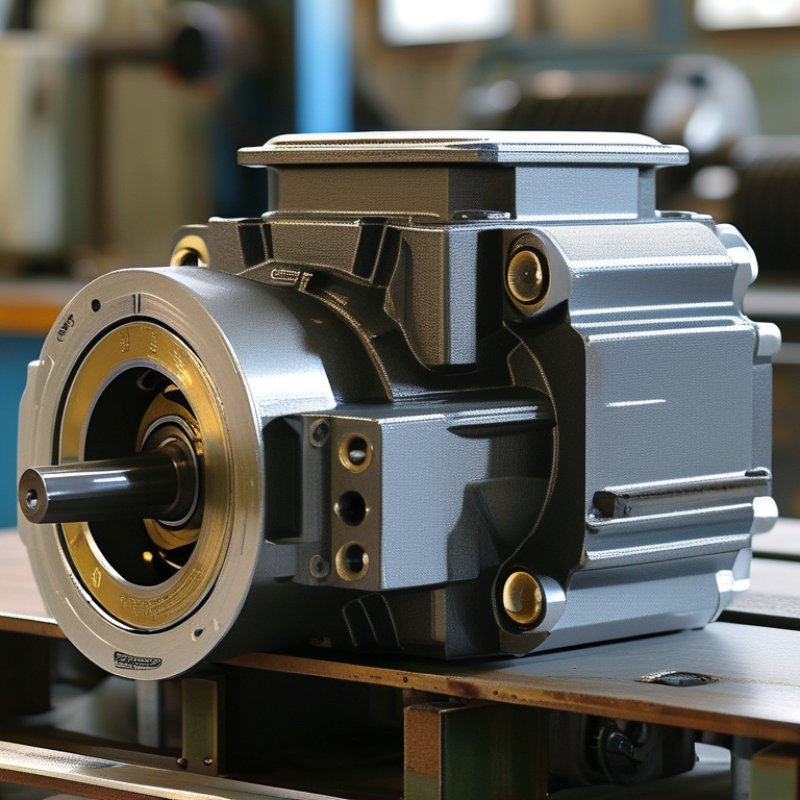

7 Tips for Buying the Right Worm Gear Reducer?
Table of Contents [Hide]
1 Define the Load, Speed, and Torque Requirements
2 Choose the Appropriate Gear Ratio and Reduction Level
3 Match the Reducer to Your Motor and Installation Space
4 Evaluate Efficiency, Materials, Lubrication, and Operating Temperature
5 Compare Service Life, Maintenance Needs, Price, and Supplier Support

Define the Load, Speed, and Torque Requirements

7 Tips for Buying the Right Worm Gear Reducer

Define the load, speed, and torque before comparing reducers.

Tip 1: Record the machine’s continuous and peak load, including start-up shock. A conveyor carrying wet material may need more capacity than its average weight suggests.

Tip 2: Check radial and axial loads on the output shaft. These forces can shorten bearing life.

Tip 3: Measure input speed and required output speed. Do not rely on motor speed alone. A variable-speed motor may create changing operating conditions.

Tip 4: Calculate output torque under real working conditions. Use the load, drum radius, and acceleration requirements. Then add a suitable service factor. Too little margin causes overheating. Too much margin increases cost and may reduce efficiency.

Tip 5: Review duty cycles carefully. Ten minutes per hour differs greatly from continuous operation. Small details matter. A field mistake I have seen is sizing for normal running while ignoring frequent reversals.

Tip 6: Consider worm gear efficiency and heat generation at the selected ratio. High reduction ratios can produce more heat, especially in enclosed spaces.

Tip 7: Confirm the reducer’s allowable torque, speed, mounting position, and lubrication requirements in its technical documentation. Ask for test data when the application includes shock loads or long operating hours. A quick spreadsheet helps, but it cannot replace checking the machine in actual service.

Choose the Appropriate Gear Ratio and Reduction Level

Choosing the gear ratio is the most important step when buying a worm gear reducer.

Calculate it as input speed divided by required output speed. For example, reducing 1,750 rpm to 35 rpm requires approximately a 50:1 ratio. A higher ratio is not automatically better. It may increase torque, but it can also reduce efficiency and create more heat.

Use the actual load, not only the motor nameplate. At 1,750 rpm and 1.5 kW, input torque is about 8.2 N·m. With a 50:1 ratio and 70% efficiency, theoretical output torque approaches 287 N·m. Real results vary with lubrication, temperature, duty cycle, and installation accuracy.

The U.S. Department of Energy reports that motor-driven systems can consume about 70% of industrial electricity, so inefficient reduction deserves attention. Small losses become expensive over continuous operation.

Check the reducer’s rated torque against starting torque and shock loads. Conveyor systems, mixers, and lifting equipment may need different reduction levels, even with similar motor power. The IEA estimates motor-driven systems account for roughly 46% of global electricity consumption, reinforcing the value of correct sizing.

Self-locking is sometimes expected from high-ratio worm drives. That assumption needs review. Self-locking depends on lead angle, friction, wear, and operating conditions; it should not replace a dedicated safety brake.

A practical selection should compare speed, torque, efficiency, thermal capacity, and service factor together.

Match the Reducer to Your Motor and Installation Space

7 Tips for Buying the Right Worm Gear Reducer?

Match the reducer to your motor before comparing prices. Check motor power, rated speed, torque, duty cycle, and starting load. A 1.5 kW motor running at 1,450 rpm may need a different ratio than a conveyor motor facing frequent starts. The U.S. Department of Energy’s Motor Systems Market Assessment notes that motor-driven equipment consumes about 25% of U.S. electricity. Small efficiency losses can therefore become expensive over long operating hours.

Tip 1: Calculate output torque, not only horsepower.
Tip 2: Confirm the motor flange, shaft diameter, and mounting orientation.

Installation space often decides whether a reducer works in practice. Measure the available length, height, shaft clearance, and service access. Leave room for lubrication checks and coupling removal. A compact housing may fit the drawing but fail beside a guard or cable tray.

Tip 3: Compare the reducer’s actual outline dimensions with the machine frame.
Tip 4: Check whether the output shaft points in the required direction.

This sounds obvious. It is often missed.

According to ISO 10816 vibration guidance, abnormal vibration can indicate alignment or mechanical problems. Select suitable bearings, seals, and a service factor for shock loads. Worm reducers can generate heat, especially at high ratios and continuous duty. Review thermal capacity, ambient temperature, and ventilation.

Tip 5: Ask for noise, temperature, and efficiency data at your working load.
Tip 6: Avoid selecting by ratio alone.
Tip 7: Recheck the calculation with a maintenance technician.

My own practical mistake was trusting a neat spreadsheet while ignoring cleaning access. The reducer fit, but servicing it was awkward.

Evaluate Efficiency, Materials, Lubrication, and Operating Temperature

7 Tips for Buying the Right Worm Gear Reducer

Tip 1: Check efficiency at your real speed and load. Worm reducers often deliver 50–90% efficiency, depending on ratio, geometry, lubrication, and running-in. A high ratio may create more sliding contact and heat. The U.S. Department of Energy reports that motor-driven systems consume about 70% of industrial electricity, so small losses can become expensive over long shifts. Ask for measured efficiency data, not only catalogue estimates.

Tip 2: Inspect materials carefully. Hardened steel gearing, suitable bronze components, and rigid housings can improve wear resistance.

Tip 3: Match the lubricant to the manufacturer’s viscosity and additive requirements. Incorrect oil may increase friction or damage soft gear surfaces. In practice, I have seen a reducer run quietly during commissioning, then overheat after an unsuitable lubricant was added. That mistake is easy to miss.

Tip 4: Calculate operating temperature under continuous duty.

Tip 5: Allow for ambient heat, enclosure limits, startup frequency, and poor ventilation. ISO 10816 vibration guidance and AGMA technical practices support regular condition monitoring, but temperature still deserves direct measurement. Use an infrared thermometer at the housing, while remembering that surface readings can be misleading.

Tip 6: Compare rated torque with service factor, shock loads, and actual duty cycles.

Tip 7: Record oil changes, noise, temperature, and backlash. The IEA has repeatedly identified motor-system efficiency as a major industrial energy opportunity, yet purchasing decisions often focus only on initial price.

I would challenge that habit. A cheaper reducer with higher losses may cost more every month. Check the assumptions twice.

Compare Service Life, Maintenance Needs, Price, and Supplier Support

Choosing the right worm gear reducer requires more than checking the catalog price. Match the reducer to the actual load, speed, duty cycle, and ambient temperature. A unit running near its torque limit may fail early. Ask for rated service life under your operating conditions, not only laboratory figures. Check gear materials, housing strength, sealing quality, and backlash. Small details matter.

Maintenance needs can change the real cost significantly. Confirm the lubricant type, filling level, inspection interval, and drain access. A reducer mounted under a conveyor should not require awkward removal for every oil change. Inspect shaft seals and bearings during scheduled servicing. Dust, moisture, and repeated starts can shorten service life. I have seen equipment appear efficient until oil leakage became a daily issue.

Compare total ownership cost over several years. Include energy consumption, lubricant, spare parts, downtime, and labor. The cheapest purchase can become expensive after one unexpected shutdown. Request clear efficiency data at your normal speed and load. Supplier support also deserves a practical test. Ask whether technical drawings, installation instructions, and replacement parts are readily available. Check response times before an urgent failure occurs. Good support is measurable. One weakness remains: estimates are rarely perfect. Recheck them after observing actual temperature, noise, and vibration during the first months.
